Elevate Your Competitiveness with Solventless Technology
Machine is the ideal production tool for food-safe packaging and eco-friendly products. With a maximum speed of up to 400 m/min and a fully integrated and intuitive control panel, our solventless machine will increase your competitive edge by providing a cost-effective solution.
This machine is available in Eco model with 200 MPM, and standard model with 350 & 450 MPM. We provide both unwinder and rewinder shaftless auto Edge guide system to reduce your job change over time.
100
+
Machines Delivered
350
MPM
Speed
8
To 500 Micron
Material Range
Features
Precision Lamination Machinery
- Heavy Duty MS Structure
- Heating System
- Dosing Pump
- 5 Roll Coating System
- Ultrasonic web guide system
- Individual Exhaust at both end
- High precision measuring steel roller, three rollers for Adhesive Transfer.
- Adjustable Adhesive Quantity
- Centralized HMI Operation for Various Parameters Machine Operations
- Roller Heating Through Water Heating Systems
- Adhesive Auto Mixer (Adhesive Dosing System)
- High precision C. Multi drive System
- Shaftless Unwinder and Rewinder
Lamination Machine
| METHOD | SOLVENTBASE | SOLVENTLESS | HEAT AND PRESS |
|---|---|---|---|
| WEB WIDTH | 1525 | 1525 | 1525 |
| SPEED ( MPM ) | 250 | 350 | 150 |
| MICRON | 500 | 200 | 500 |
| Micron | 800 | 1000 | 1000 |
| Unwind | Pneumatic Brake | Digital AC/ Servo | Digital Servo |
| HEATING | Thermic Fluid / Electric | Water / Oil | Water / Oil |
| Drive | AC Servo / AC Vector Drive | AC Vector Drive | AC Vector Drive |
| Material | BOPP, PET, CPP, Nylon, PVC Shrink, PE,PP, PVA, Paper, Aluminum foil | BOPP, PET, CPP, Nylon, PVC Shrink, PE,PP, PVA, Paper, Aluminum foil | BOPP, PET, CPP, Nylon, PVC Shrink, PE,PP, PVA, Paper, Aluminum foil |
Lamination Machine Layout
Types Of Lamination Machine
Solventbase Lamination Machine
Solvent-based laminating adhesive is a type of adhesive that is dissolved in a solvent to create a liquid adhesive that can be applied to a wide range of materials. The solvent evaporates, leaving behind the adhesive, which hardens and bonds the materials together. This type of adhesive is commonly used in the packaging, printing, and laminating industries. It is known for its high strength and fast drying properties, but it also has a strong odor, and the solvent can be flammable, so it must be used in well-ventilated areas.

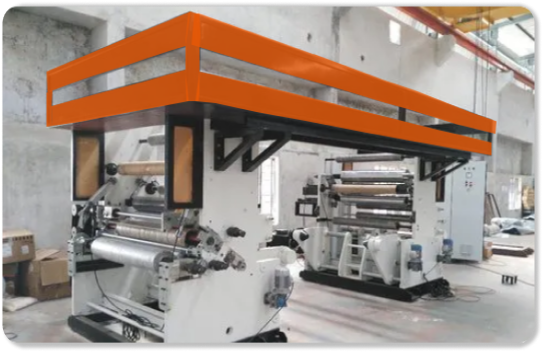

Solventless Lamination Machine
The lamination machine adopting safety, healthy and environmentally friendly process is more and more required, which is the reason why solventless lamination machine is developed rapidly all over the world. 1.It adopts 100% adhesive, no solvent residue, reducing the pollution of packaging contents, especially food, drugs, etc. There is no volatile solvent emissions in the production, and there is no pollution on the atmospheric environment.

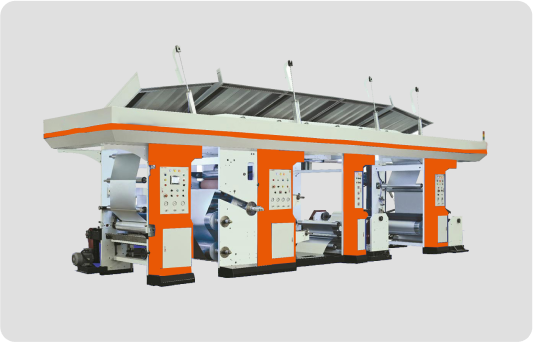

Heat And Press Lamination Machine
Our specialized Heat & Press machine is designed and conceptualized for highly sensitive pharmaceutical packaging products. The machine is capable of laminating Pharma grade Aluminium foil with extruded Polyethylene without the use of any solvent or adhesive, at speeds of up to 100 m/min, making it the best solution for the pharma packaging industry. The user can also opt to integrate a water-based lamination facility.
Slitting Rewinding Machine
